Vendor: ONKA

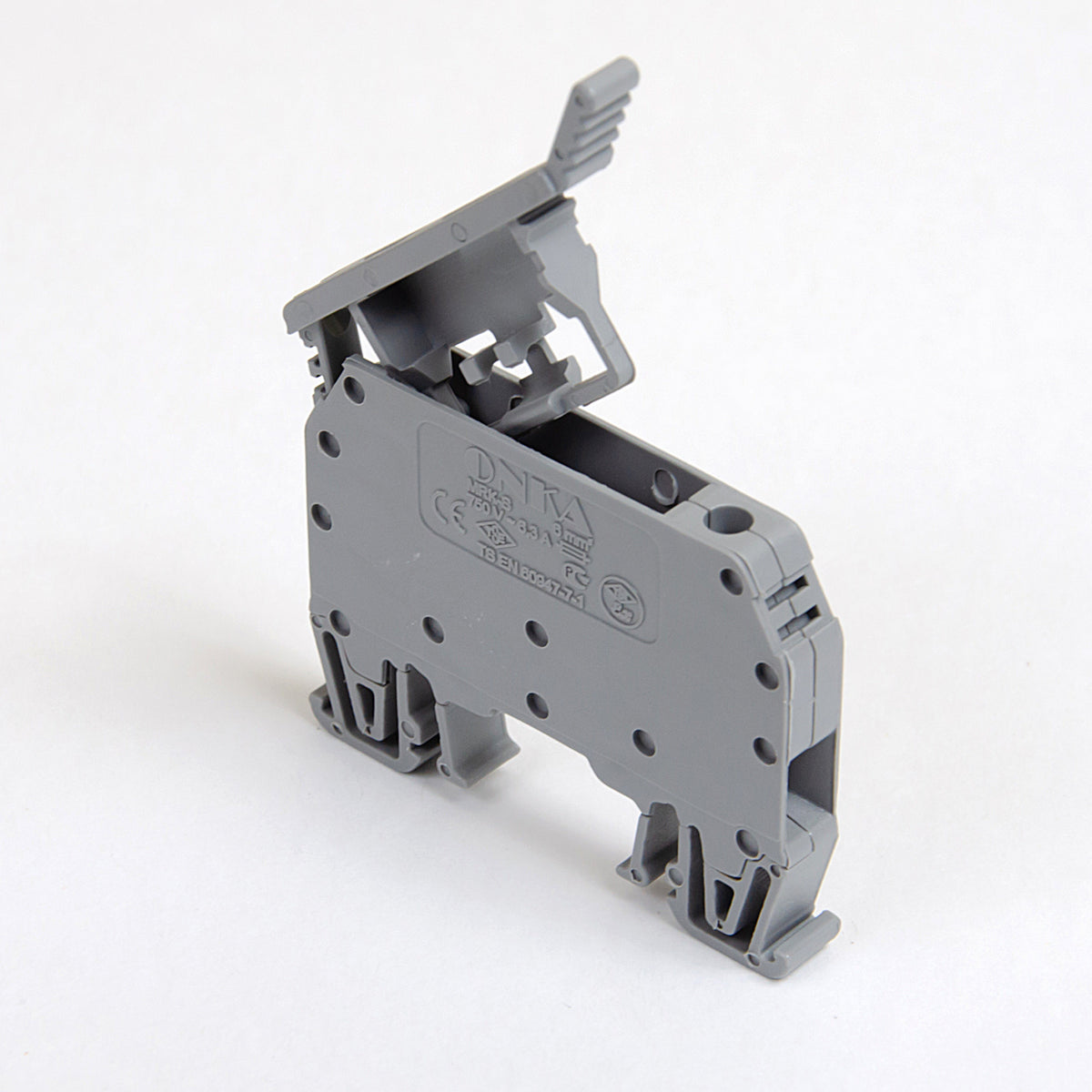

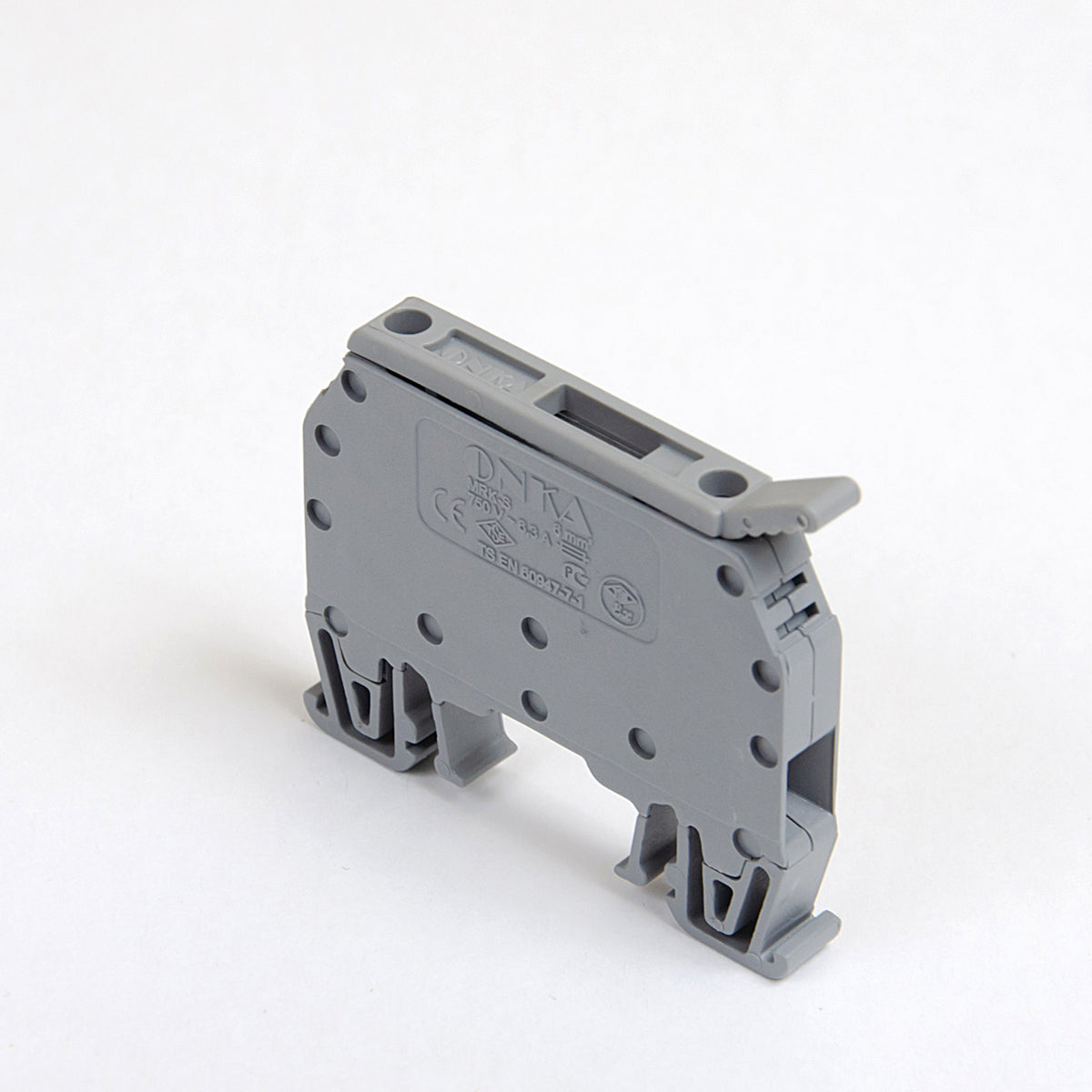

ONKA 6mm2 screw connection terminal block (fuse not included) gray, 1010241

Barcode: 1010241
€2,95
€2,95
excl. VAT: €2
186 in stock
  • Description
  • Payment methods
  • Warranty
Terminal block with screw connection (fuse not included), 2-wire, gray, ONKA, made in Turkey

Used for the protection of AC or DC circuits with low current. A 5x20 mm fuse with a current rating of up to 6.3 A is installed in the terminal. The fuse is not included and must be ordered separately.

Technical parameters

Cross-section of the connected single wire up to: 6mm2
Color: gray
Insulating material of the main housing: Polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Tightening torque: 0.8 Nm
Connection position: side / side
Length of the cable tie: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
