ONKA 6mm2 spring terminal block DIN rail clamp 2-pole blue, 1020037
- Regular price
- €1,42
- Regular price
-
- Sale price
- €1,42
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

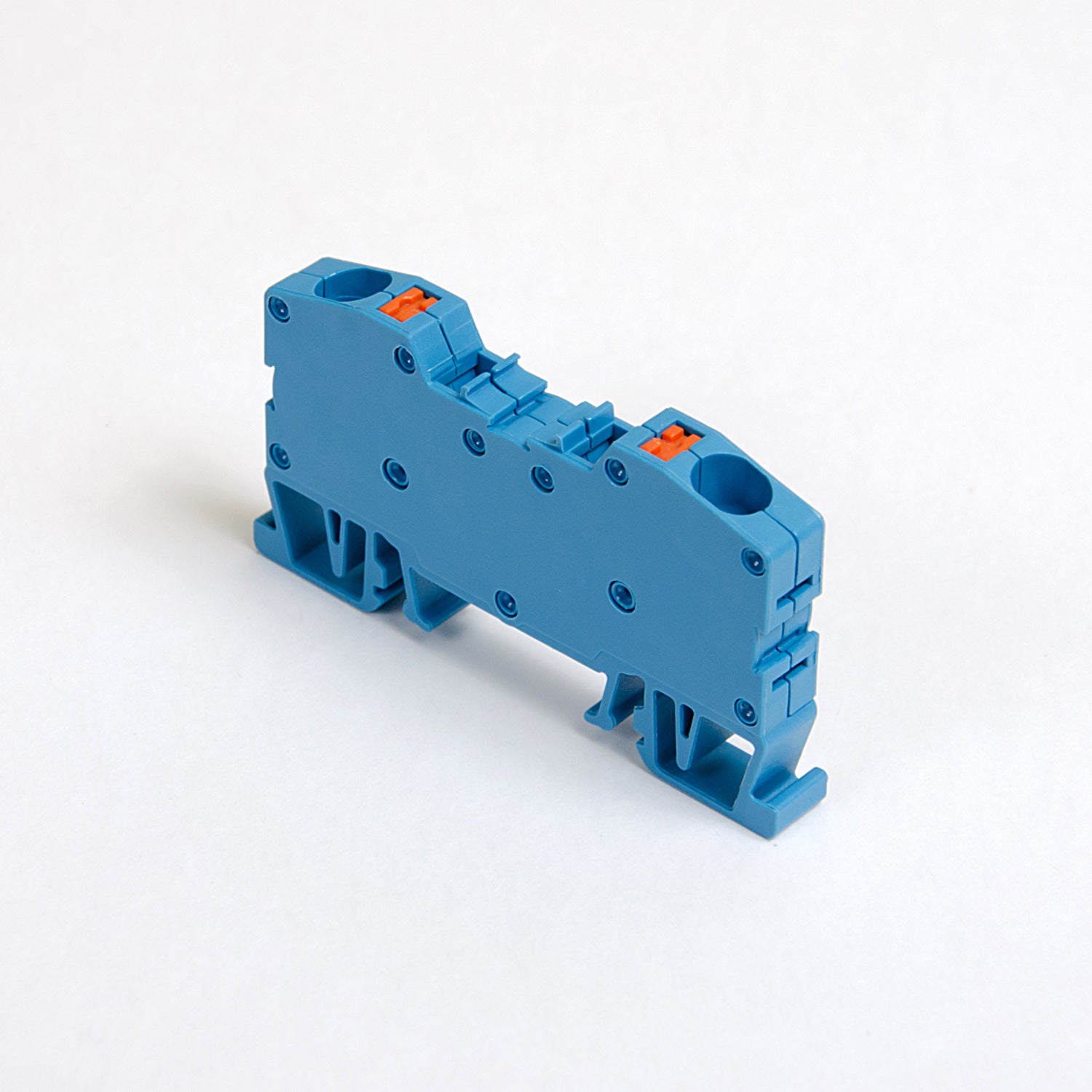

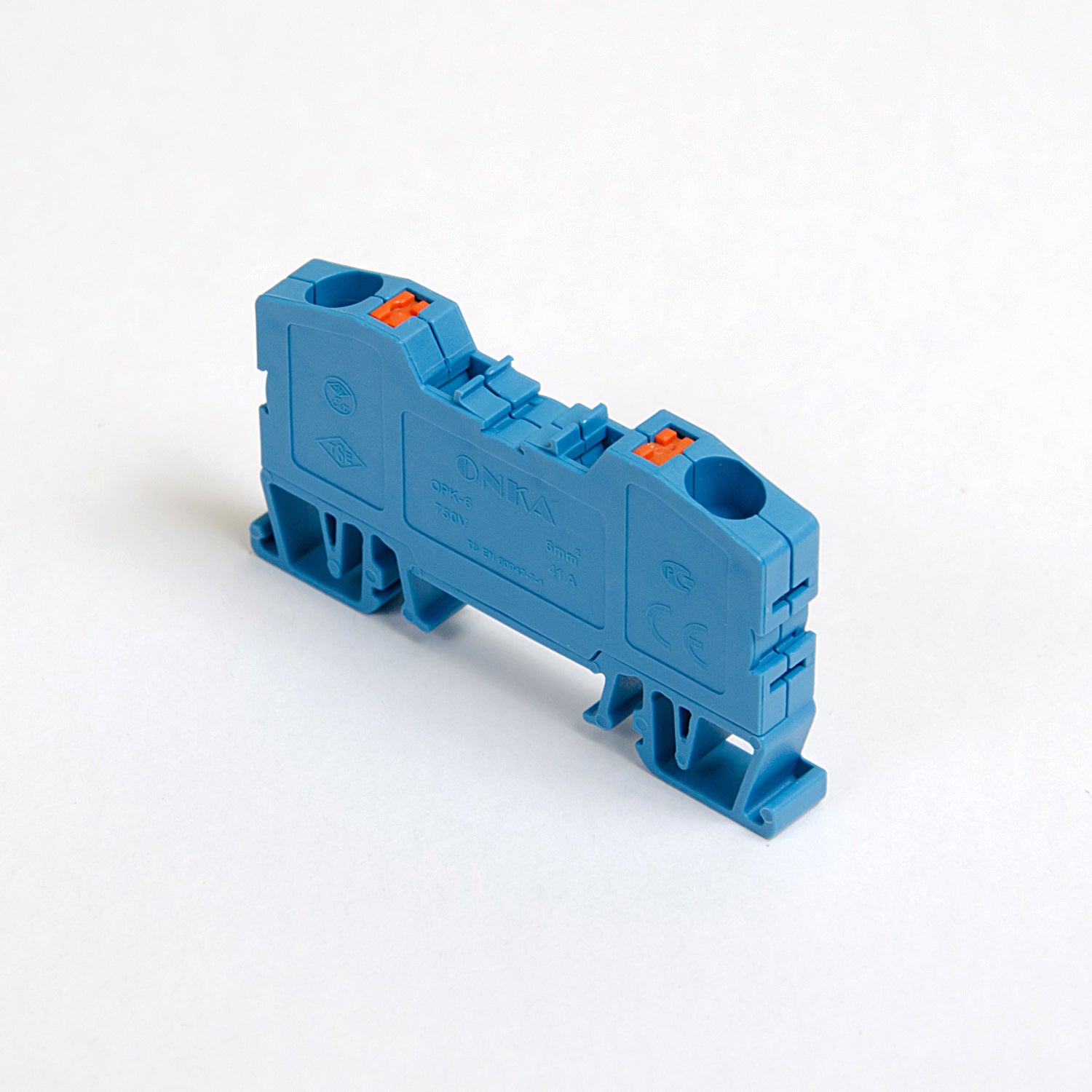

Spring Terminal Block Connector / DIN Rail Clamp 2-pole, retractable contact, blue, ONKA, made in Turkey.
The ONKA coupling/clamp is a reliable solution for anyone seeking functional and durable components in electrical installations.
Made from high-quality materials, the coupling guarantees a long service life and resistance to mechanical damage.
Technical Specifications
Cross-section of connected single cable up to: 6mm2
Color: blue
Insulating material of main housing: Polyamide (PA6.6)
Contact/bridge material: Stainless steel/Copper
Connection position: Top / top
Length of cable strip: 12mm
Type of electrical connection: Spring clamp / Retractable contact
Rated voltage: 750V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
