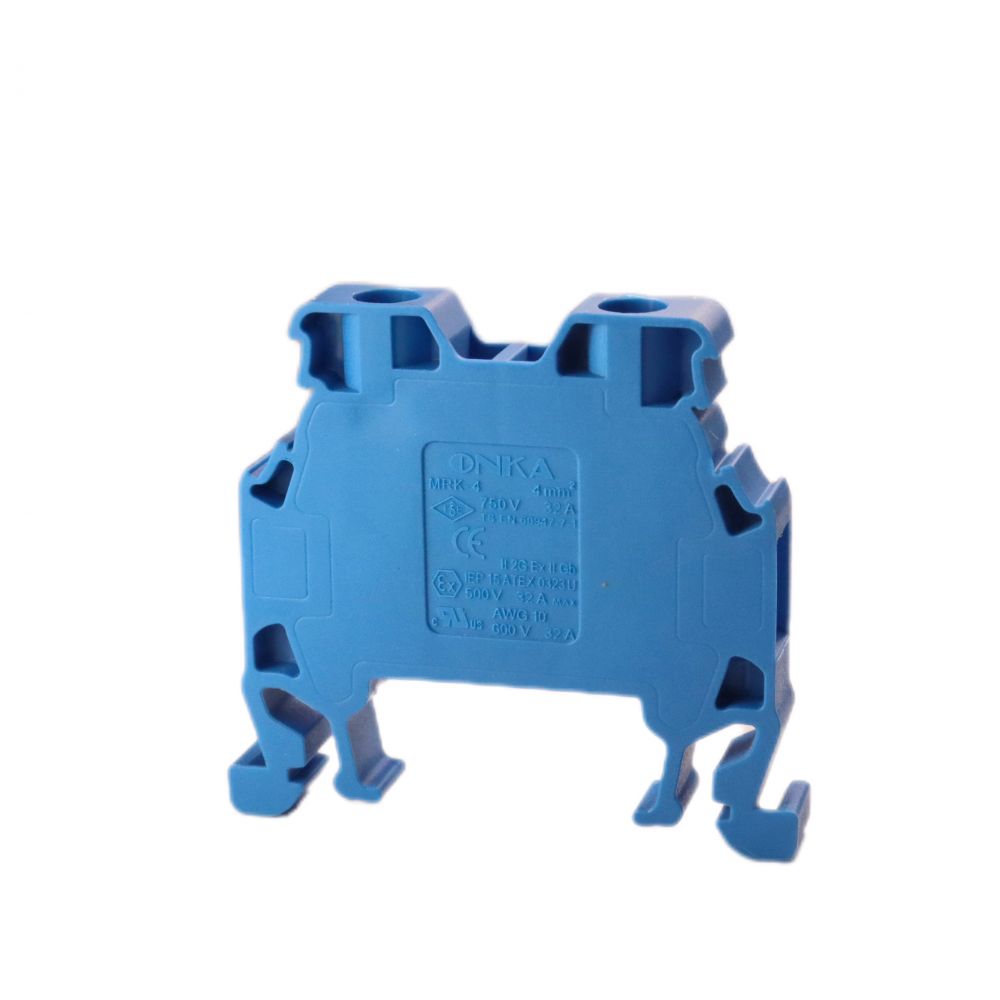

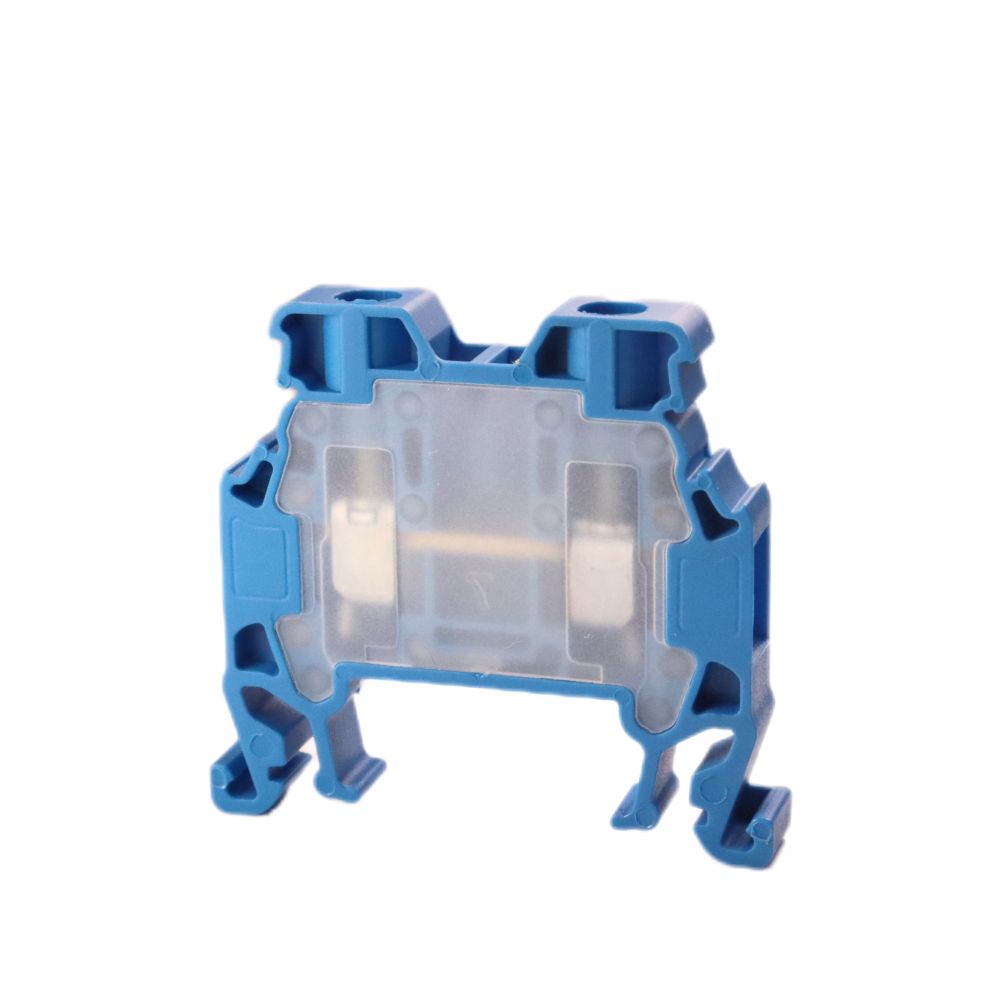

Screw busbar connector / DIN rail clamp 2-pole blue, ONKA, made in Turkey
The ONKA coupler / terminal block is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector made of high-quality materials guarantees a long service life and resistance to mechanical damage.
Technical parameters
Cross-section of the connected single cable up to: 4mm2
Color: blue
Insulating material of the main housing: Polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Tightening torque: 0.5 Nm
Connection position: side / side
Length of the cable tie: 10mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
