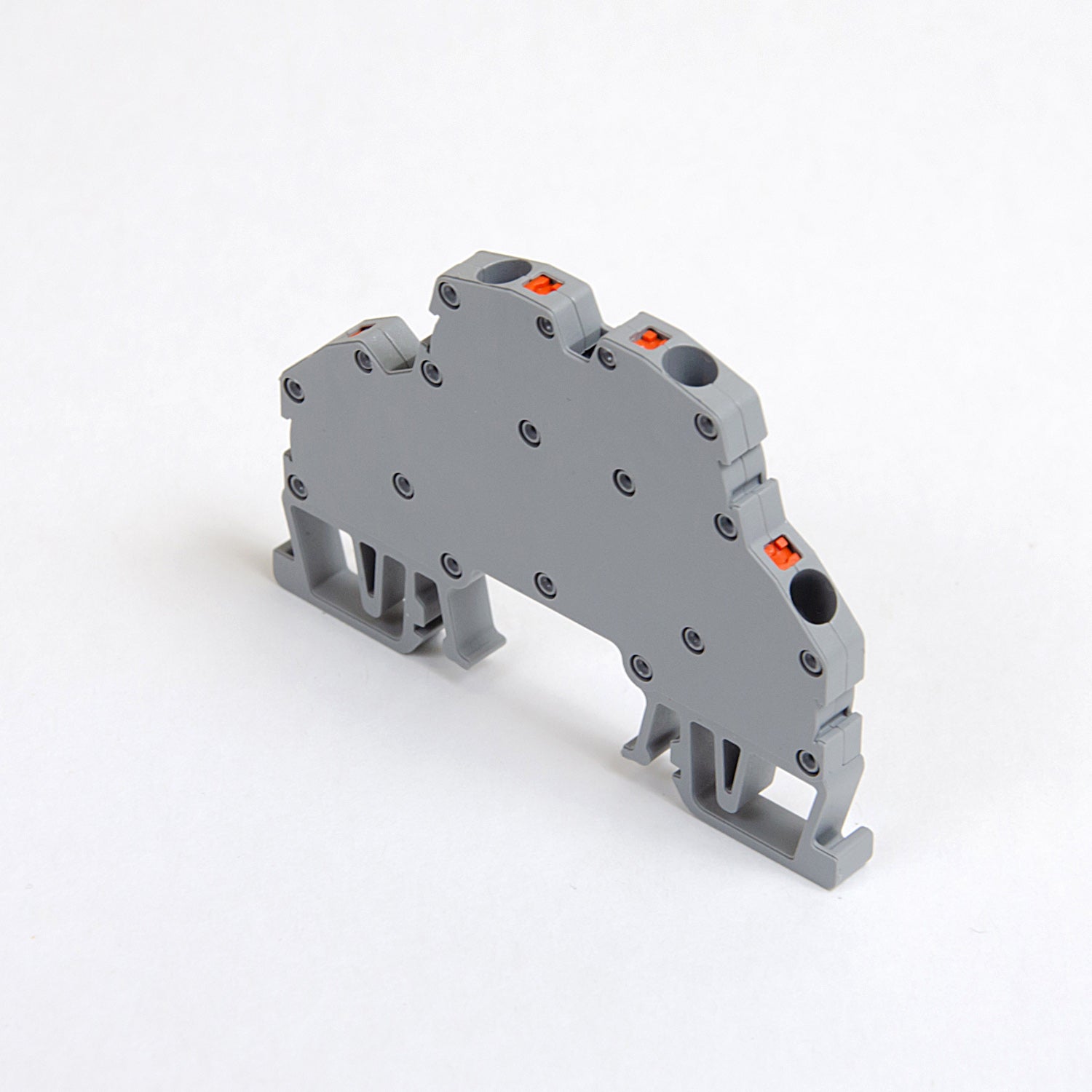

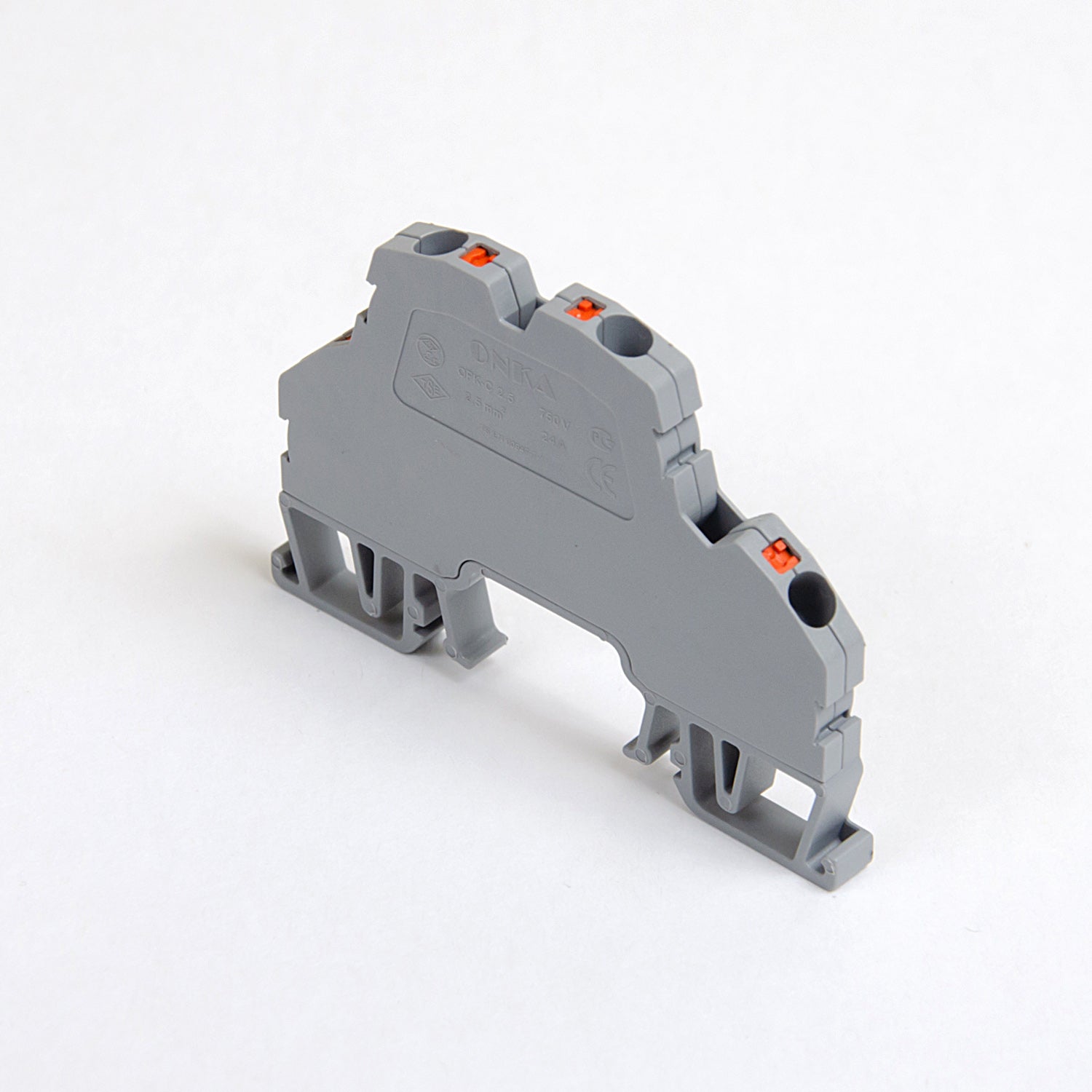

ONKA 4mm2, 2-fold spring-loaded terminal block DIN rail clamp 4-conductor gray, 1020406
- Regular price
- €1,57
- Regular price
-
- Sale price
- €1,57
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
2-Pair Spring Rail Connectors / 4-Wire Gray DIN Rail Terminal, ONKA, made in Turkey
The compact ONKA installation rail couplings offer great options for connecting any wires with different cross-sections. The transparent housing makes it easy to check the correct arrangement of the wires. The original ONKA quick connectors provide high mounting comfort and 100% connection reliability.

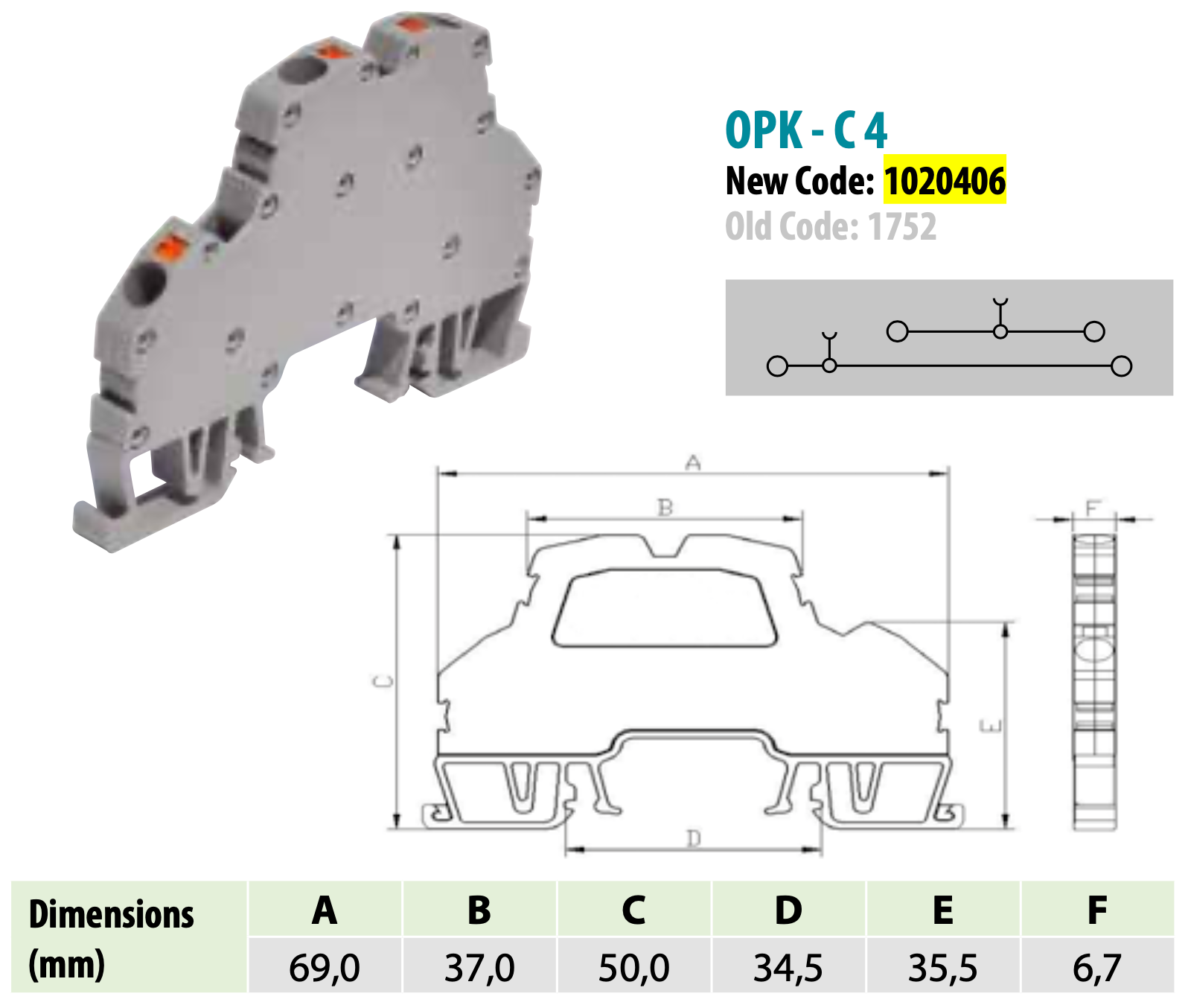

Technical Parameters
Cross-section of connected single wire up to: 4mm2
Color: gray
Insulating material of main housing: Polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: Top / top
Cable stripping length: 9mm
Electrical connection type: Spring clamp
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
