ONKA 25mm2 screw terminal block DIN rail clamp 2-pole gray, 1010062
- Regular price
- €2,05
- Regular price
-
- Sale price
- €2,05
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

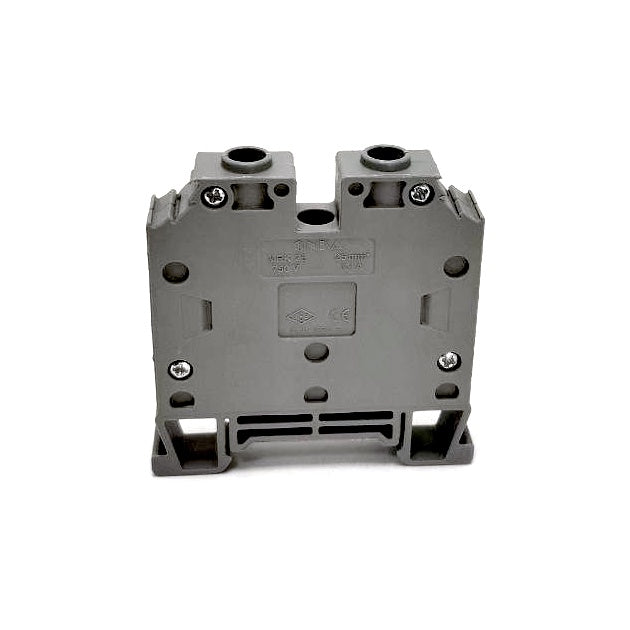

Screw busbar connector / DIN rail terminal 2-pole gray, ONKA, made in Turkey
The compact ONKA installation rail connectors offer a variety of options for connecting any cables with different cross-sections. The transparent housing allows for easy checking of the correct arrangement of the wires. The original ONKA quick couplings provide high installation comfort and 100% connection reliability.

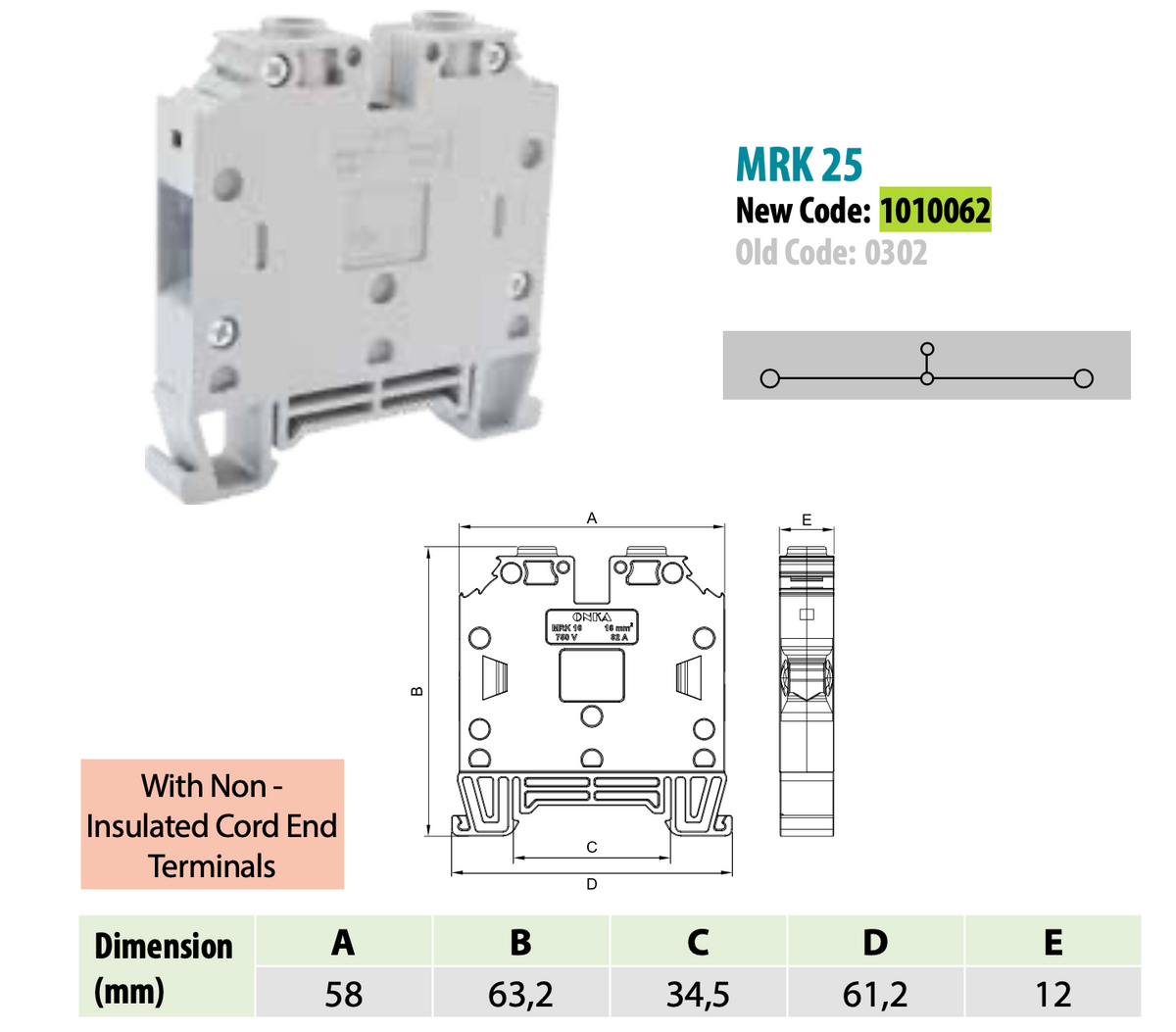

Technical parameters
Cross-section of the connected single cable up to: 25mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Material contact/bridge: CK45 steel/copper
Tightening torque: 2.0 Nm
Connection position: side / side
Length of the cable strap: 18mm
Electrical connection type: screw terminal
Rated voltage: 750V
Rated current: 101A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
