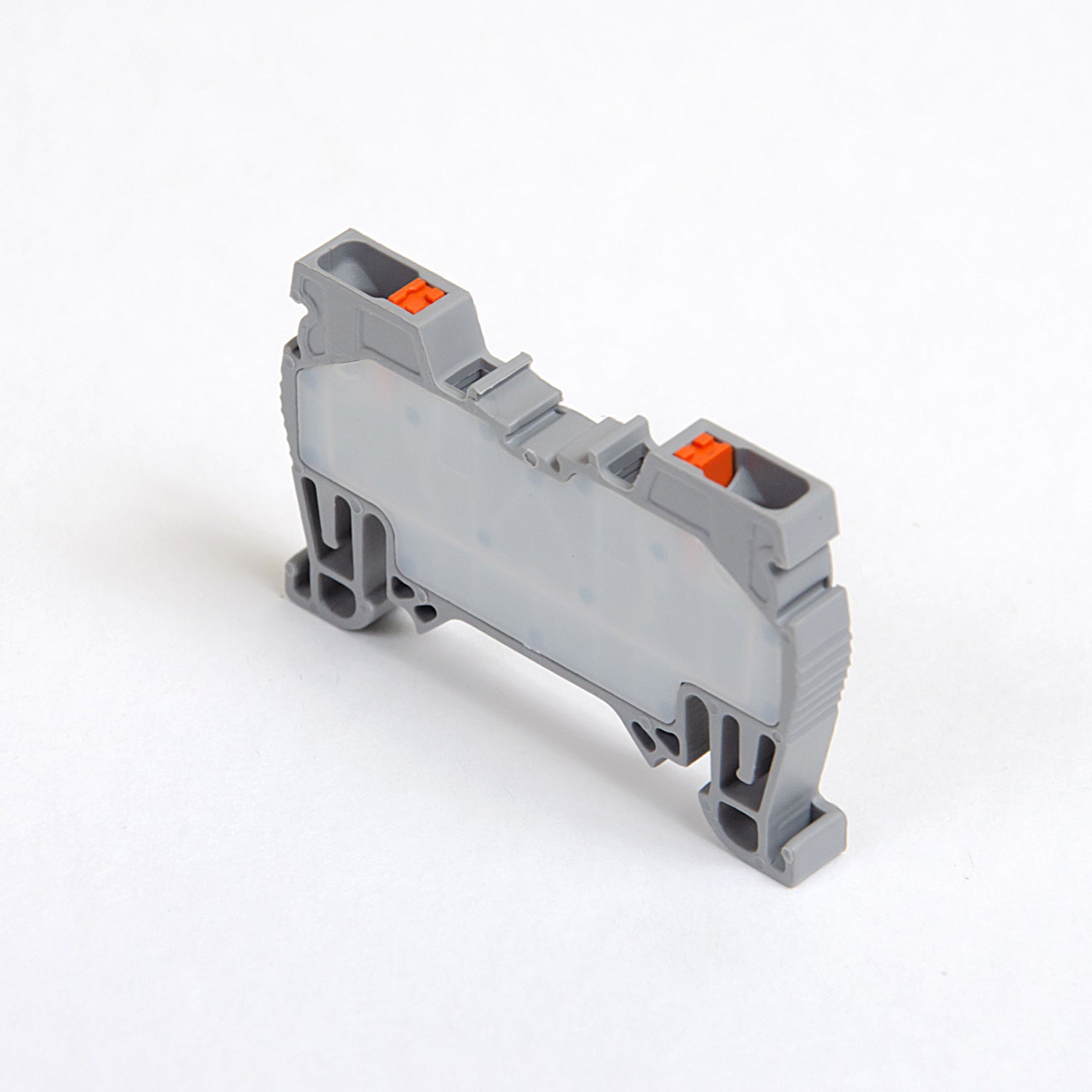

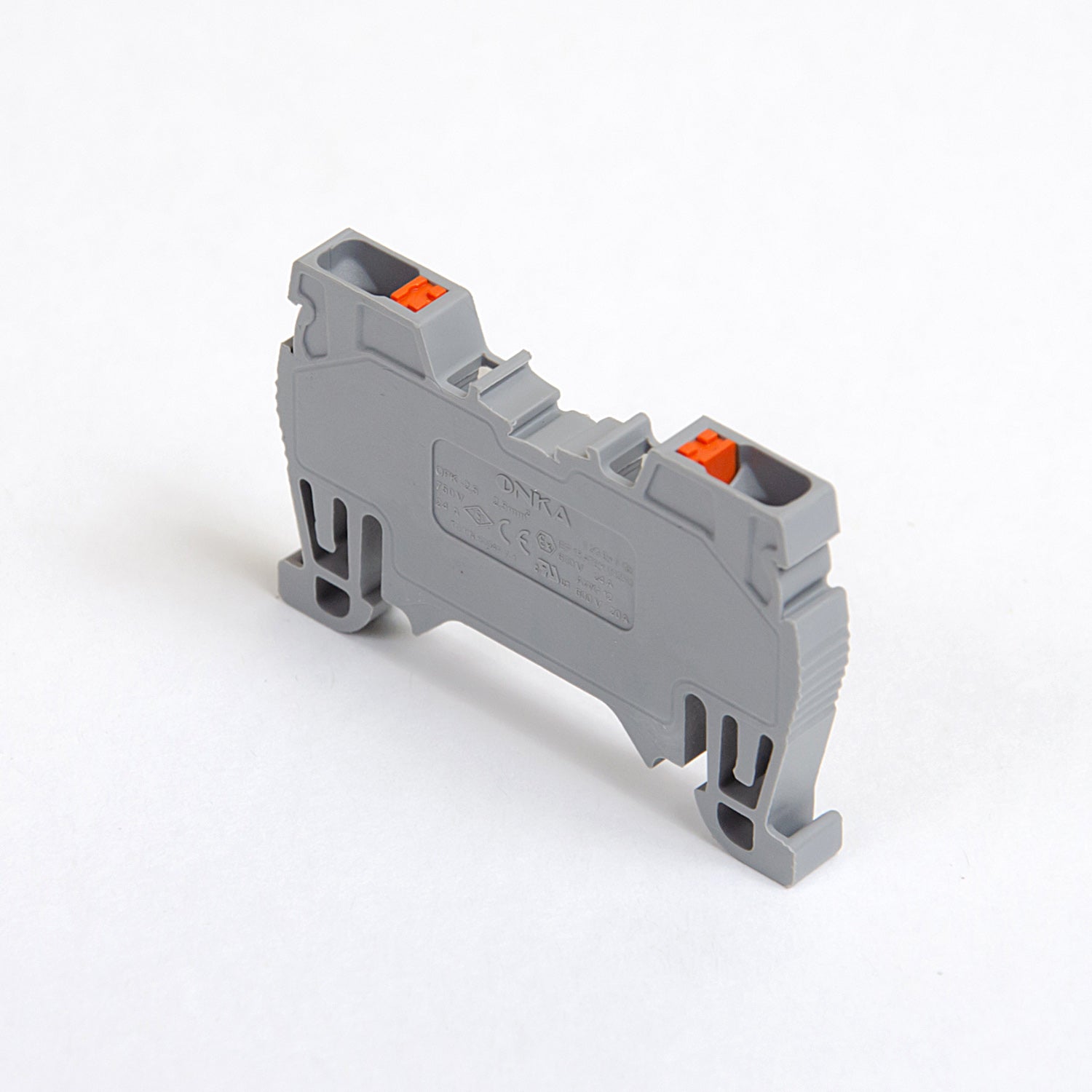

ONKA 2.5mm2 spring terminal block DIN rail terminal 2-pole gray, 1020013
- Regular price
- €0,51
- Regular price
-
- Sale price
- €0,51
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Spring busbar connector / DIN rail clamp 2-pole, retractable contact, gray, ONKA, made in Turkey
The compact ONKA installation rail couplings offer a variety of connection options for any cables with different cross-sections. The transparent housing allows for easy checking of the correct arrangement of the wires. The original ONKA quick couplings provide high installation comfort and 100% connection reliability.
Technical parameters
Cross-section of the connected single conductor up to: 2,5mm2
Color: gray
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: Stainless steel/Copper
Connection position: top / top
Length of the cable tie: 9mm
Electrical connection type: Spring clamp/Removable contact
Rated voltage: 750V
Rated current: 24A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting type: DIN 35 mm mounting rail
Standard: EN-60947-7-1
